SINDHU STITCHER - POWER DRIVEN WIRE STITCHING MACHINE



SINDHU brand power stitching machine with robust construction and nice outlook is synonymous of higher efficiency and accuracy. It is meant for stitching the books, booklets and currency notes. The machine gives higher rate of efficiency and accuracy at highest speeds. It is distinguished in terms of simple mechanism and remarkable exterior presentation. The machine is most simple in terms of operation, clean formation of staples. It is most suitable for higher rate of performance and commercial production without any wastage of material and time. The machine gives long life and is most economic for space requirement with a lowest upkeep cost. Wire stitching machines available with us are in sizes 5/8”, 1/2”, 1” and 1 ¼”.



Power Driven Wire Stitching Machines available at Sindhu Machinery House (SMH) are –

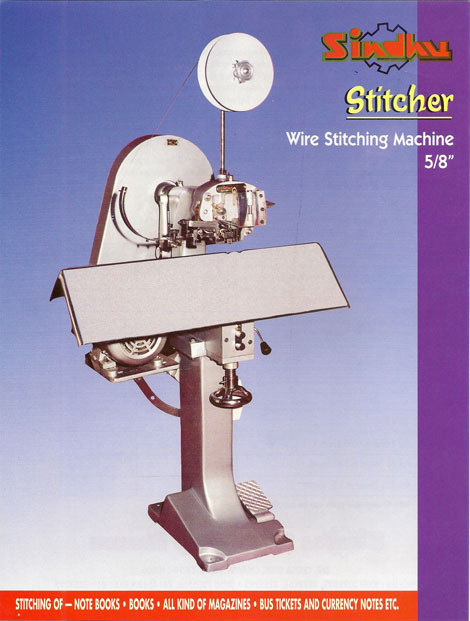

1). Sindhu Stitcher  5/8” – This wire stitching machine is just apt for stitching of notebooks, books, all kind of magazines, bus tickets, currency notes, etc.



Technical Data –



Size of Machine

5/8”

16 mm

Gross weight Approx. (packed in one case)

250 Kg

625 Lb.

Net Weight (without packing)

150 Kg

375 Lb.

Space required

32” X 28”

81 cm X 71 cm

Speed

150 stitches per minute



Stitching Capacity

2 sheets to 170 sheets

.005” to 5/8”
2 mm to 16 mm

Motor

1/2  H.P. (single phase or three phase)



Wire Required





For 2 sheets to 60 sheets

24 S.W.G.



For 61 sheets to 120 sheets

22 S.W.G.



For 121 sheets to 170 sheets

21 S.W.G.





Note- Interchangeable parts can be supplied on demand



Click to view this product

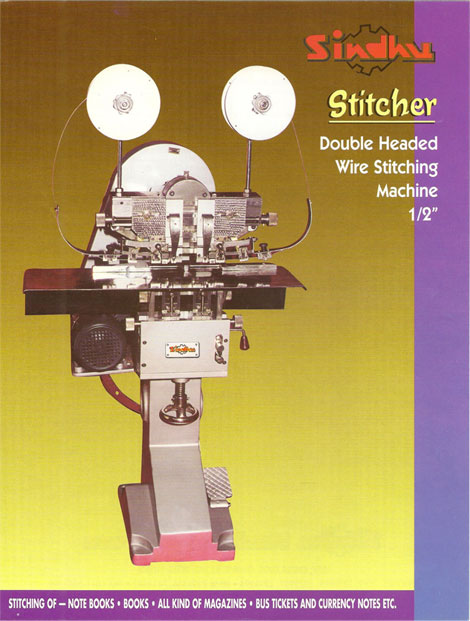

2). Sindhu Stitcher 1/2”– This double headed wire stitching machine is perfect for stitching of notebooks, books, all kind of magazines, bus tickets, currency notes, etc.



Technical Data –



Size of Machine

1/2”

12.7 mm

Gross weight Approx. (packed in one case)

350 Kg

875 Lb.

Net Weight (without packing)

200 Kg

500 Lb.

Space required

32” X 28”

81 cm X 71 cm

Speed

150 stitches per minute



Stitching Capacity

2 sheets to 170 sheets

.005” to 1/2”
2 mm to 12.7 mm

Motor

1 H.P. (single phase or three phase)



Wire Required





For 2 sheets to 60 sheets

24 S.W.G.



For 61 sheets to 120 sheets

22 S.W.G.



For 121 sheets to 150 sheets

20 S.W.G.





Note- Interchangeable parts can be supplied on demand



Click to view this product

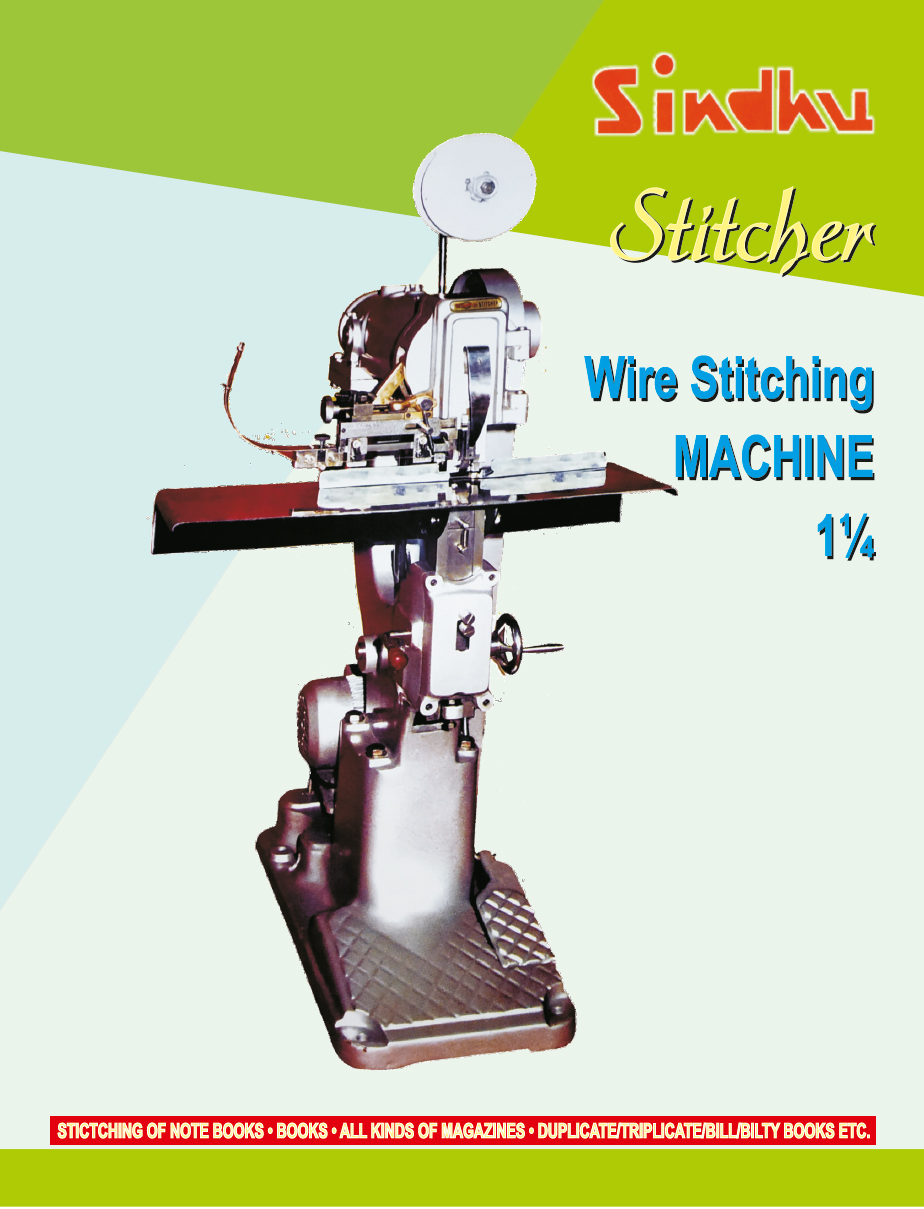

3). Sindhu Stitcher 1” & 1¼” – This is our single headed power driven 1” & 1¼” wire stitching machine which is cater all your needs for stitching of notebooks, books, all kind of magazines, bus tickets, currency notes, etc.



Technical Data –



Size of Machine

1”

25 mm

Gross weight Approx. (packed in one case)

400 Kg

1100 Lb.

Net Weight (without packing)

250 Kg

625 Lb.

Space required

32” X 28”

81 cm X 71 cm

Speed

140 stitches per minute



Stitching Capacity

2 sheets to 300 sheets

.005” to 1”
2 mm to 25 mm

Motor

1 H.P. (single phase or three phase)



Wire Required





For 2 sheets to 60 sheets

24 S.W.G.



For 61 sheets to 120 sheets

22 S.W.G.



For 121 sheets to 200 sheets

20 S.W.G.



For 200 sheets to 300 sheets

18 S.W.G.





Note- Interchangeable parts can be supplied on demand



Click to view this product



4). Sindhu Stitcher 1 ½” – Our double headed 1 ½” wire stitching machine is one of its kind. It is made with excellent engineering and is simply perfect for stitching of bill books (bilty), notebooks, books, all kind of magazines, bus tickets, currency notes, etc.



Technical Data –



Size of Machine

1 ½”

37 mm

Gross weight Approx. (packed in one case)

440 Kg

1100 Lb.

Net Weight (without packing)

250 Kg

625 Lb.

Space required

32” X 28”

81 cm X 71 cm

Speed

140 stitches per minute



Stitching Capacity

2 sheets to 400 sheets

.005” to 1 ½”
2 mm to 37 mm

Motor

1 H.P. (single phase or three phase)



Wire Required





For 2 sheets to 60 sheets

26 and 24 S.W.G.



For 61 sheets to 120 sheets

22 S.W.G.



For 121 sheets to 200 sheets

20 S.W.G.



For 200 sheets to 400 sheets

18 S.W.G.





Note- Interchangeable parts can be supplied on demand



Click to view this product





5). SINDHU STITCHER - TRADEL DRIVEN BOOK STITCHING MACHINE (Wire Stitching Machine) -

SINDHU brand machine is distinguished in respect of its sturdy built-up and easy maintenance. It is meant for stitching books, booklets and blocks such as currency notes. It gives perfect performance and nice presentations. The machine frame and its sturdy mechanism give remarkable rigidity and fine exterior look. The machine gives longer life of performance and is distinguished for clean and flawless staples, resulting higher rate of output with no wastage in terms of time and production. The machine is more accurate and suitable for commercial production. It is most economical in respect of space required and commercial production. These stitching machines available with us are in sizes 5/16”, 7/16”, 9/16”, 11/16” and 13/16”.



Technical Data –



Size

Stitching Cap.

Die Set

Nett Weight

Gross Weight

Space Required

5/16"

10-175 Pages

2 No's Die Set

90 Kg

125 Kg

33" x 27 " x21"

7/16"

10-250 Pages

2 No's Die Set

110 Kg

145 Kg

33" x 27 " x21"

9/16"

10-350 Pages

3 No's Die Set

110 Kg

145 Kg

33" x 27 " x21"

9/16" Ad.

10-350 Pages

Single Die set

120 Kg

150 Kg

33" x 27 " x21"

11/16" Ad.

10-400 Pages

Single Die set

120 Kg

150 Kg

33" x 27 " x21"

13/16" Ad.

10-470 Pages

Single Die set

135 Kg

160 Kg

33" x 27 " x21"



Click to view this product





6). SINDHU STITCHER - FOUR HEAD BOOK STITCHING MACHINE (Wire Stitching Machine)-

SINDHUfour head book stitching machine is an ultimate sturdy machine built-up for easy maintenance. It is meant for stitching books, booklets and blocks such as currency notes. It gives perfect performance and nice presentations. The machine frame and its sturdy mechanism give remarkable rigidity and fine exterior look and comes with excellent adjustable heads. The machine gives longer life of performance and is distinguished for clean and flawless staples, resulting higher rate of output with no wastage in terms of time and production. The machine is more accurate and suitable for commercial production. It is most economical in respect of space required and commercial production with capacity to dispense 150 staples per minute.



Technical Data –

Max stitching capacity : 8 mm (5/16")

Stitching wire round : 24 No. SWG

Staple Size : 150 staple/min

Staple to Staple Gap during 4 heads

Minimum Gap - 2 1/2" (63 mm)

Maximum Gap - 4" (100 mm)

Staple to Staple Gap during 3 heads

Maximum Gap - 6 " (150 mm)

Staple to Staple Gap during 2 heads

Maximum Gap - 12 " (300 mm)

Table Length - 40" (1000 mm)





Click to view this product
